LazrBloc Lens Technology

Mission-Critical Laser Protection for Tactical Environments

Laser threats—both visible and invisible—are increasingly used to disorient or damage the eyes of military, law enforcement, and aviation personnel. Revision’s LazrBloc® lenses provide advanced protection against these threats by absorbing specific laser wavelengths, including dangerous near-infrared (NIR) energy. Unlike surface coatings, LazrBloc dyes are embedded in the lens material, ensuring lasting durability and protection in the harshest environments.

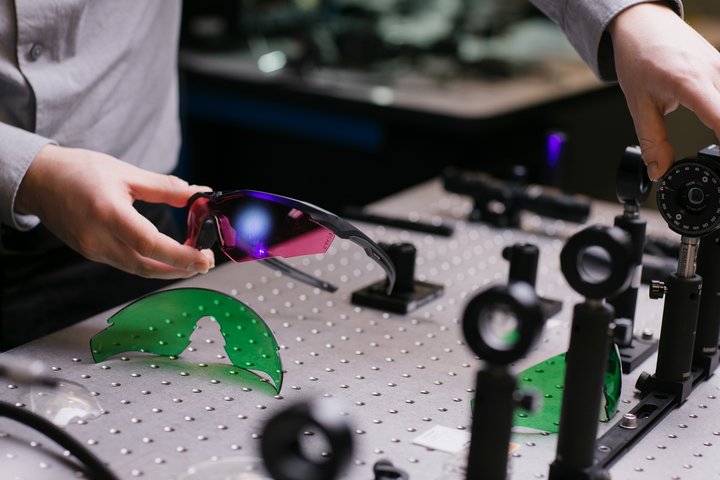

These lenses also meet military ballistic standards and feature Revision’s elite anti-fog and scratch-resistant coatings for reliable, distortion-free vision. Available across multiple eyewear platforms, LazrBloc lenses are tested in-house and by third parties to deliver the highest laser protection (OD) with optimal visibility (VLT)—ensuring mission-critical performance when vision matters most.

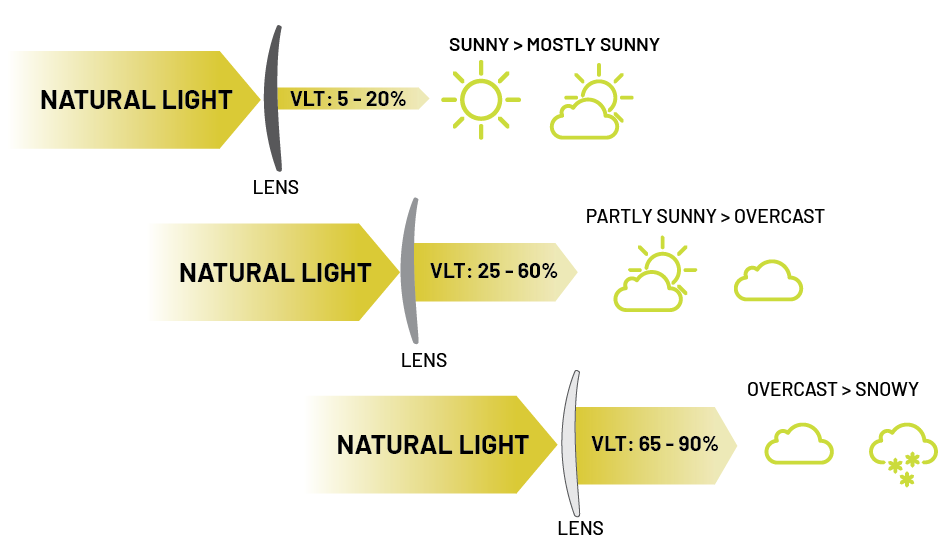

What is Visible Light Transmittance? (VLT)

The amount of light a lens allows to pass through is called Visible Light Transmission (VLT). For example, a lens with a VLT of 55 admits 55% of visible (non-UV) light, filtering out the remaining 45%. The higher the VLT percentage, the lighter (or more transparent) the lens. The lower the VLT percentage, the darker the lens will be. Regardless of VLT, all Revision lenses provide 100% UVA/UVB protection.

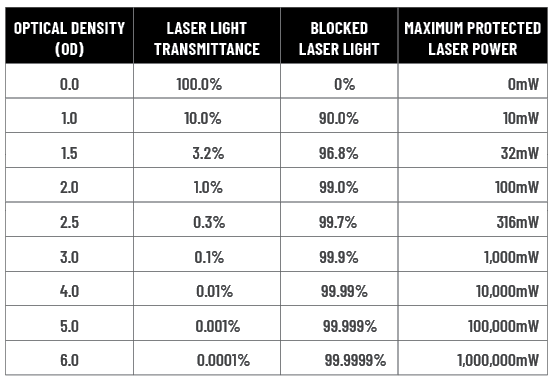

What is Optical Density? (OD)

The OD determines the amount of laser light which is blocked (by reflection or absorption) by the eyewear lens, so higher the OD number, the more laser light that is blocked. Optical Density is measured at a specific wavelength and is defined as:

Which LazrBloc Lens is Right for Me?

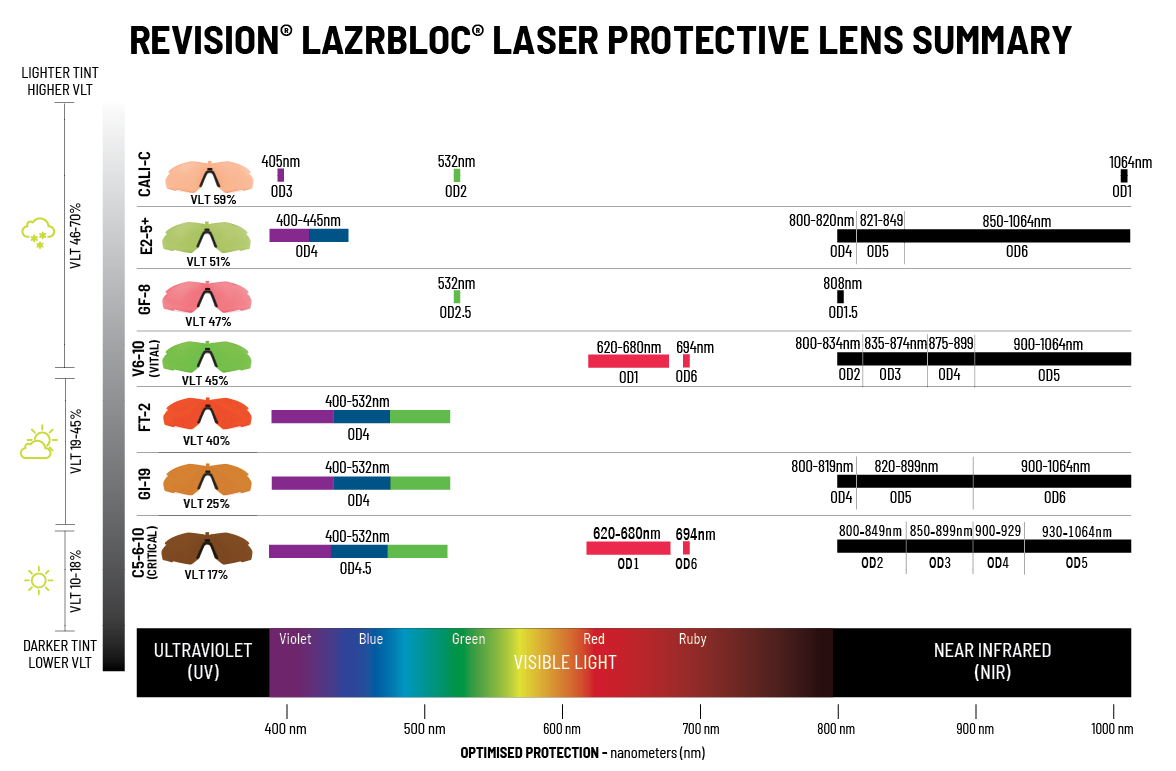

The best option for laser protection will vary depending upon the users’ specific needs. When choosing a laser protective lens, match the lens to the specific laser wavelengths you’re most likely to face, balancing optical density (OD) for protection with visible light transmission (VLT) for situational awareness. Since no single lens can block all colors, select a solution that targets the most common threats in your environment—such as green or near-infrared—while still allowing enough clarity for mission effectiveness. Whether it be visible green, blue or violet lasers or non-visible IR lasers, we have seven different laser protection options suited for your needs and protection.

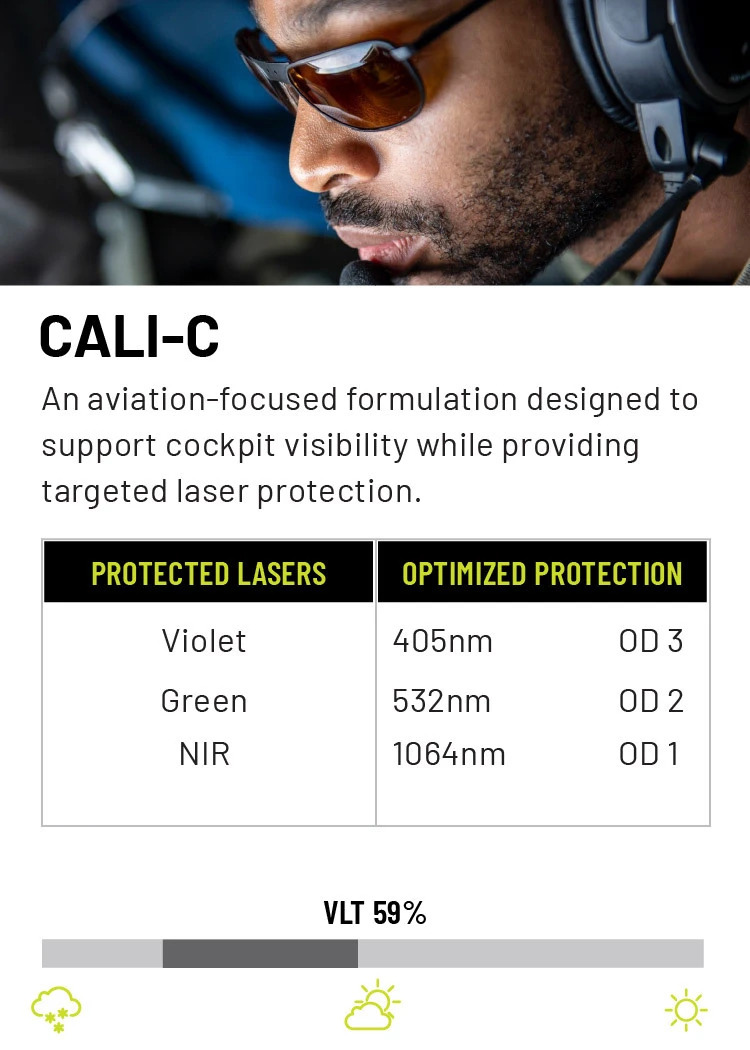

CALI-C: Protection against Violet, Green and NIR lasers

 The CALI-C solution was developed to maximize aviator protection and situational awareness – solving the challenges of laser eye protection in a cockpit environment.



The CALI-C Lens is designed to block visible violet, green, and Near InfraRed (NIR) lasers from damaging the wearer’s eyes.  Revision CALI-C lenses protect against visible violet lasers at 405nm wavelength (3 OD), visible green lasers at 532nm wavelength (2 OD), NIR lasers at 1064nm wavelengths (1 OD).

Contact our Sales Reps at sales@revisionmilitary.com for CALI-C solutions. Currently available in StingerHawk, SlingShot and Sawfly eyewear.

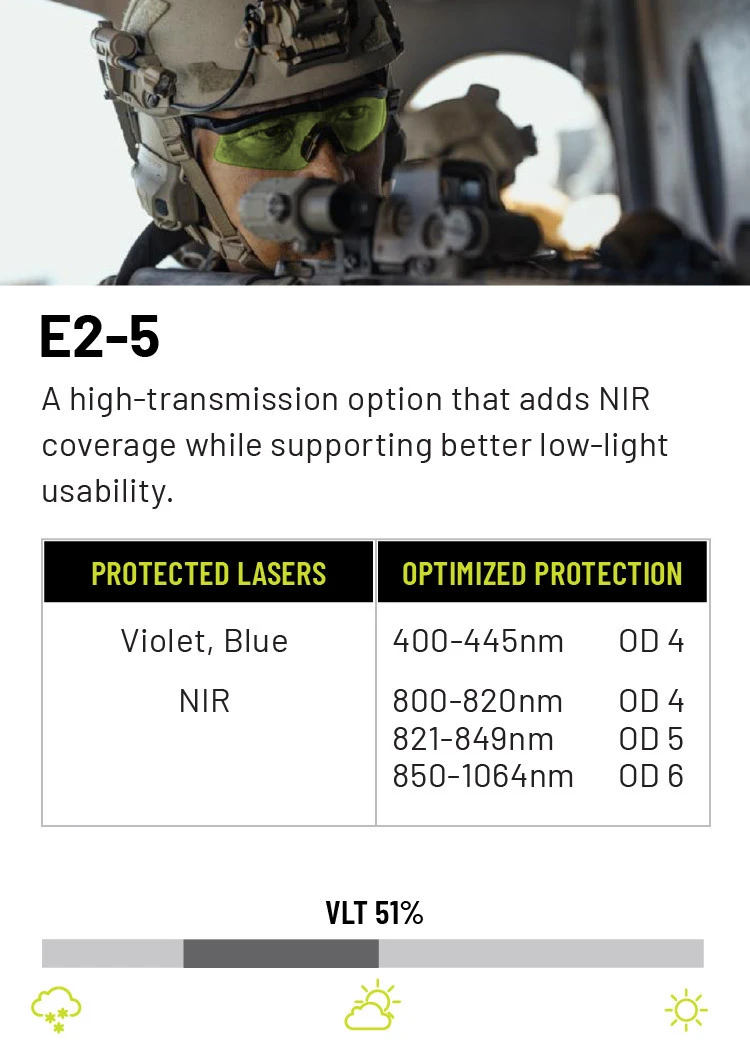

E2-5+: Protection against Violet, Blue and NIR lasers

E2-5+ lens is designed to block violet, blue and NIR lasers from damaging the wearer's eyes. LarzBloc E2-5+ lenses protect against visible violet and blue lasers at 400-445nm wavelength (4 OD), NIR lasers at 800-820nm wavelength (4 OD), 821-849nm wavelength (5 OD), 850-1064nm wavelength (6 OD). With strong OD ratings and offering a higher VLT this lens makes a great choice for use in low-light or nighttime operations.

Contact our Sales Reps at sales@revisionmilitary.com for more E2-5+ solutions. Currently available in SlingShot, StingerHawk, SlingShot and Sawfly eyewear, Desert/Asian/Carrier Locust Goggles and Exoshield eyewear system.

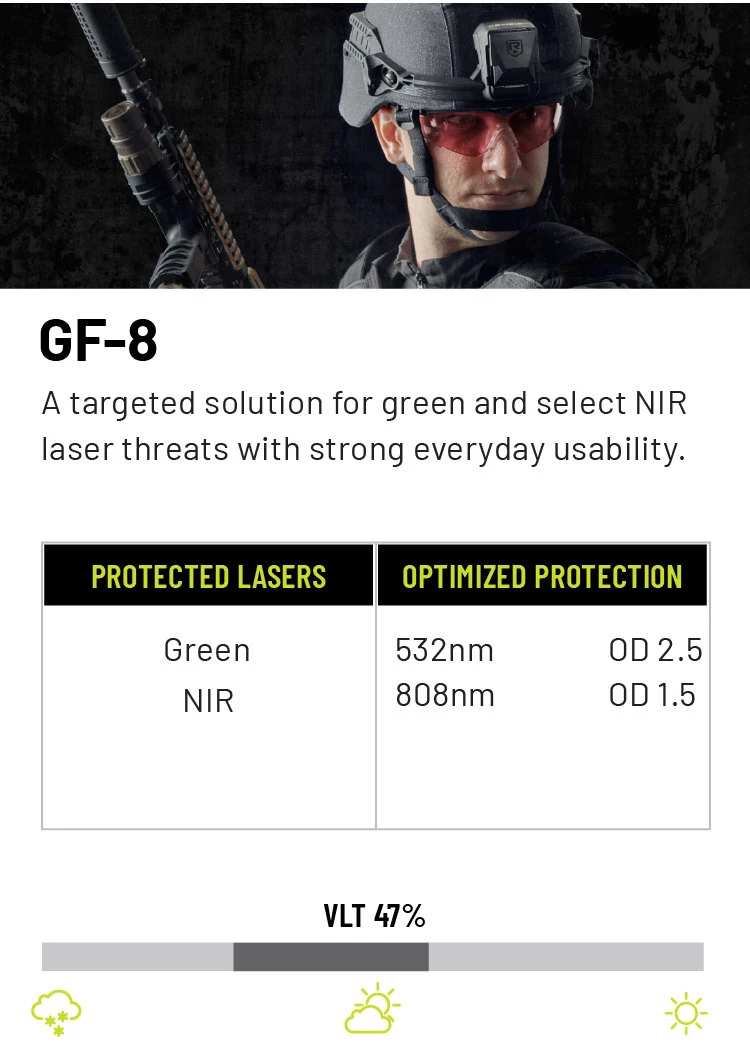

GF-8: Protection against Green and NIR lasers

The GF-8 lens is designed to block green and NIR lasers from damaging the wearer's eyes. LarzBloc GF-8 lens protects against green lasers at 532nm wavelength (2.5 OD) and NIR lasers at 808nm wavelength (1.5 OD). This lens delivers greater visible light transmission and color recognition as compared to other laser lenses on the market, making GF-8 lenses ideal for day or nighttime use.

Contact our Sales Reps at sales@revisionmilitary.com for more GF-8 solutions. Currently available in SlingShot, StingerHawk, SlingShot and Sawfly eyewear.

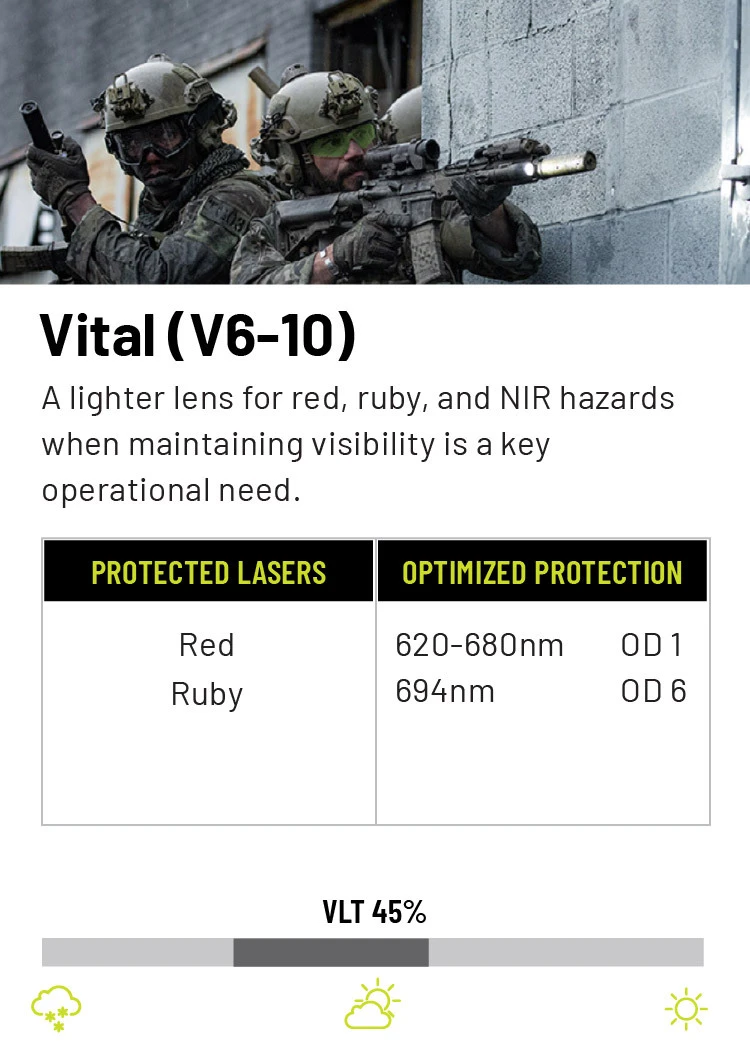

Vital V6-10: Protects against Red, Ruby and NIR lasers

The LazrBloc Vital lens is designed to block red, ruby and NIR lasers from damaging wearer's eyes. The Vital lens protects against visible red lasers at 620-680nm wavelength (1 OD), ruby lasers at 694 wavelength (6 OD), and NIR lasers at 800-834nm wavelenth (2 OD), 835-874nm wavelength (3 OD), 875-899 wavelength (4 OD), and 900-1064nm wavelength (5 OD). This lens could be useful in aviation and tactical settings where red/ruby lasers are present.

Contact our Sales Reps at sales@revisionmilitary.com for Vital laser solutions. Currently available in StingerHawk and Sawfly eyewear, Desert/Asian/Carrier Locust Goggles.

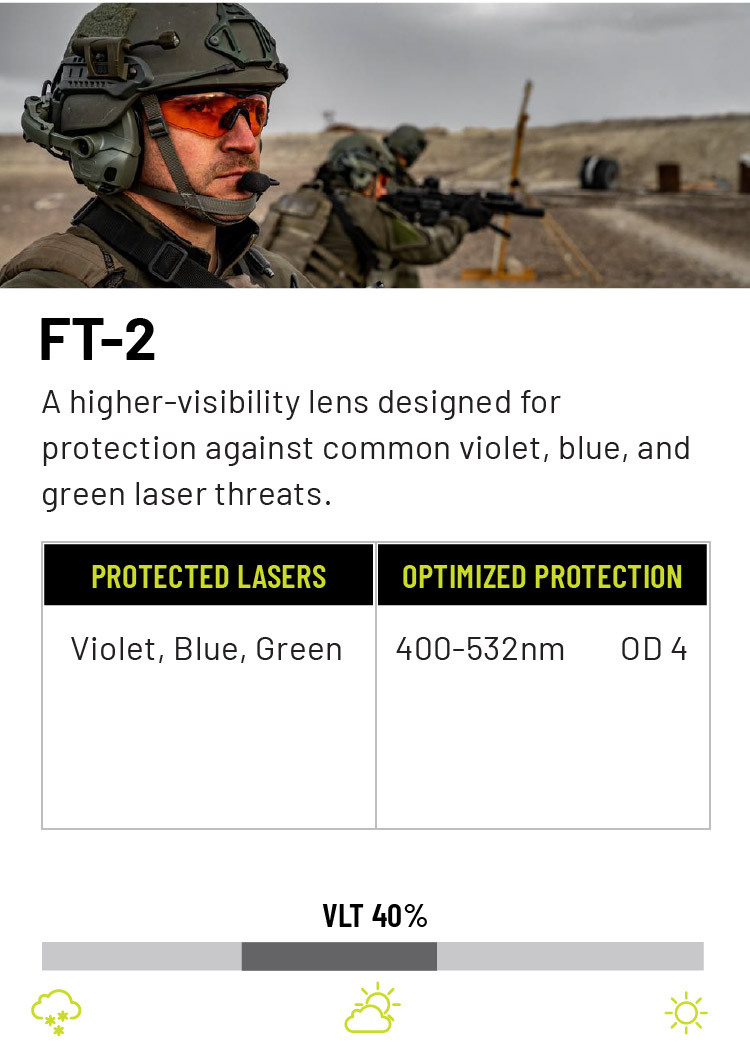

FT-2: Protects against Violet, Blue & Green lasers

The LazrBloc FT-2 lens is designed to protect against violet, blue, and green lasers from damaging wearer's eyes. The FT-2 lens protects against the violet, blue and green lasers at 400-532nm wavelength (4 OD). This lens is optimized for environments where multiple visible laser colors are used.

Contact our Sales Reps at sales@revisionmilitary.com for more FT-2 solutions. Currently available in SlingShot, Shadowstrike, StingerHawk, SlingShot and Sawfly eyewear, Desert/Asian/Carrier Locust Goggles and MerlinHawk Goggles.

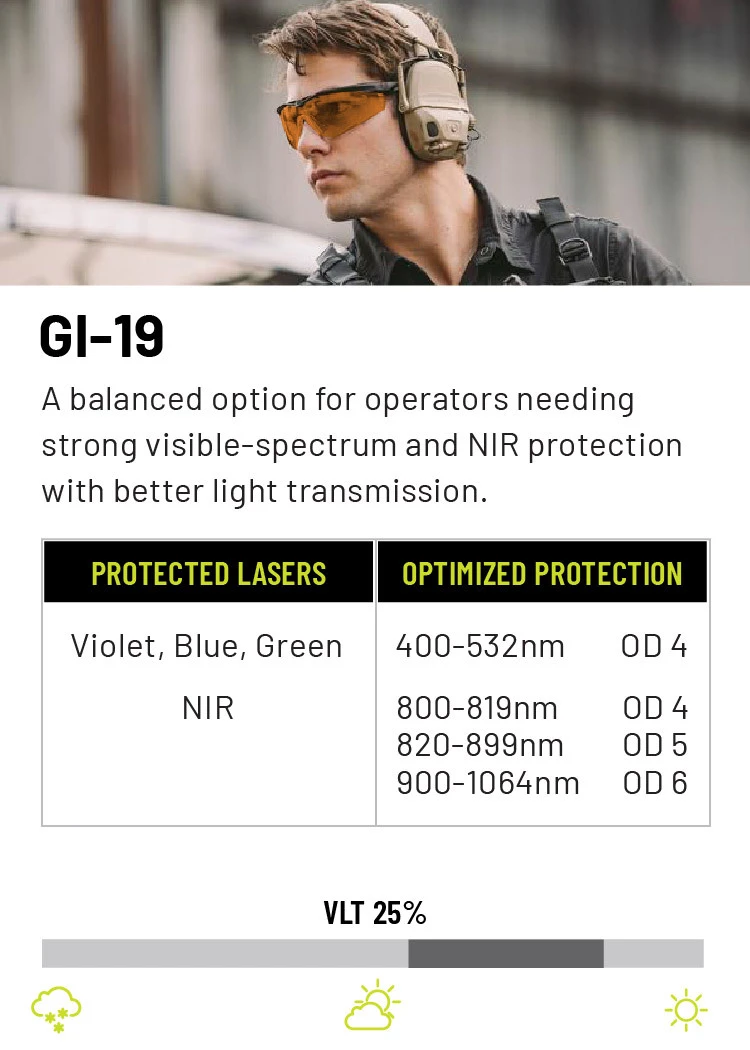

GI-19: Protects against Violet, Blue, Green & NIR lasers

The LazrBloc GI-19 lens protects against violet, blue, green and NIR lasers from damaging wearer's eyes. The GI-19 lens protects against violet, blue and green lasers at 400-532nm wavelength (4 OD) and NIR lasers at 800-819nm wavelength (4 OD), 820-899nm wavelength (5 OD), 900-1064nm wavelength (6 OD). This lens has extensive multi-band protection  and a strong all-around defense for complex, multi-wavelength environments.

Contact our Sales Reps at sales@revisionmilitary.com for more GI-19 solutions. Currently available in SlingShot, Shadowstrike, StingerHawk, SlingShot and Sawfly eyewear, Desert/Asian/Carrier Locust Goggles, MerlinHawk Goggles and Exoshield eyewear system.

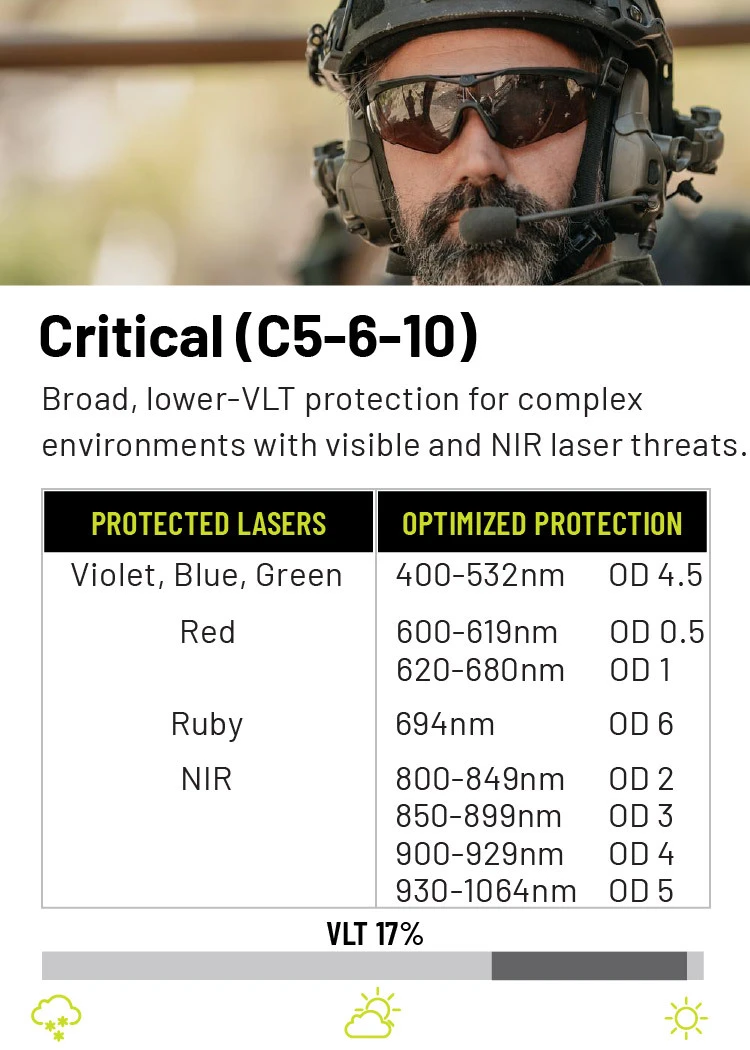

Critical C5-6-10: Protects against Violet, Blue, Green, Red, Ruby & NIR lasers

The LazrBloc Critical lens has a broad-spectrum of coverage and the highest protection levels, though with reduced light transmission. The Critical lens protects against violet, blue and green lasers at 400-532nm wavelength (4.5 OD), red lasers at 620-680nm wavelength (1 OD), ruby lasers at 694nm wavelength (6 OD) and NIR lasers at 800-849nm wavelength (2 OD), 850-899nm wavelength (3 OD), 900-929nm wavelength (4 OD), and 930-1064nm wavelength (5 OD).

Contact our Sales Reps at sales@revisionmilitary.com for Critical laser solutions. Currently available in SlingShot, StingerHawk and Sawfly eyewear, Desert/Asian/Carrier Locust Goggles.
